MP-2408XF

MP-2408XF

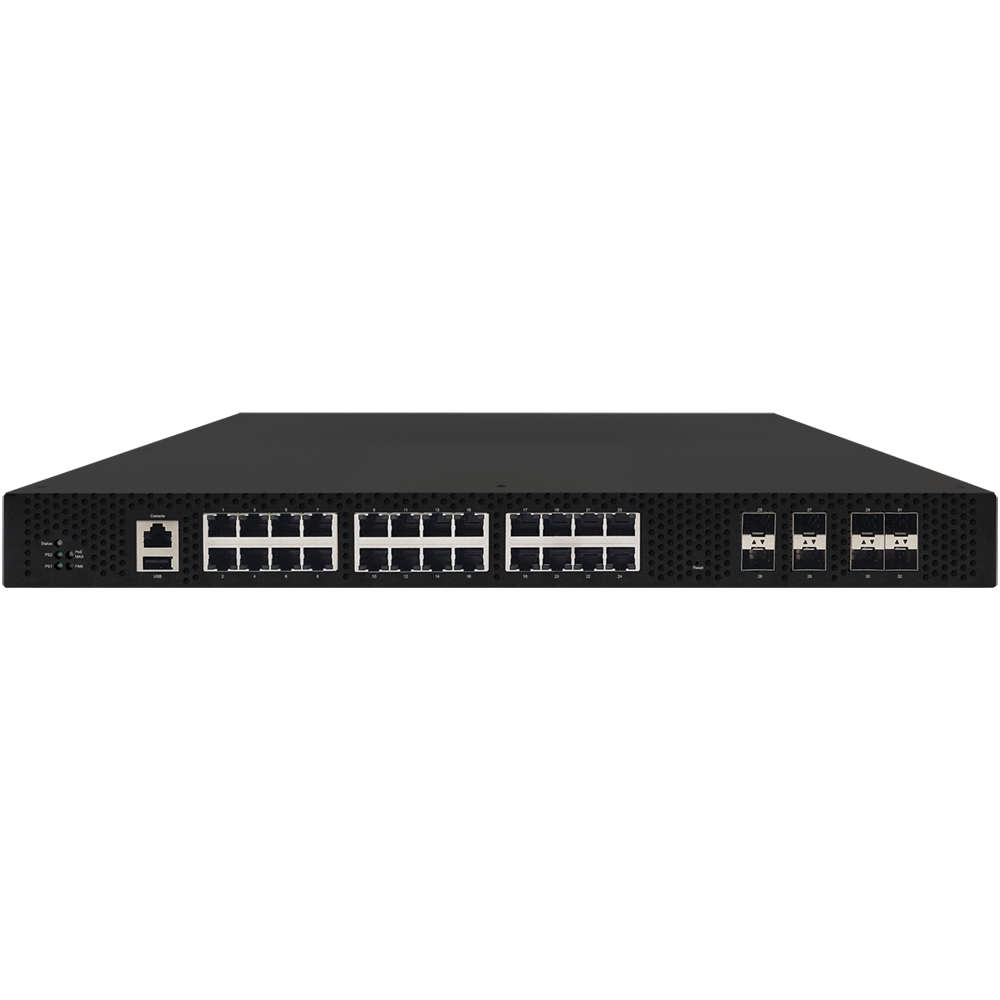

24+8 Port Industrial Managed PoE+ Ethernet Switch with 10G Uplink

24x 10GBASE-T Ethernet ports with IEEE 802.3at PoE+

8x 1G/10G SFP+ Slot

RSTP, MSTP, ERPS, LACP for Network Redundancy

QoS CoS/DSCP to increase determinism

Supports IGMP Snooping v1/v2/v3, up to 1023 groups

DHCP Relay Option 82 for policies IP address assignment

SNMP v1/v2c/v3 for network management

Supports Storm Protection

USB storage for configuration-free replacement

Supports PoE PD Alive Check Function for PoE Device Power Recycle

Technology
Standards IEEE 802.3ab 1000BaseT
IEEE 802.3an 10GBase over copper
IEEE 802.3ae 10GBase over Fiber
IEEE 802.3x Flow Control
IEEE 802.3af Power over Ethernet
IEEE 802.3at PoE+
IEEE 802.3az Energy-Efficient Ethernet
IEEE 802.3ad/802.1AX LACP
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid STP
IEEE 802.1s Multiple STP
ITU-T G.8032 / Y.1344 ERPS
IEEE 802.1Q VLAN Tagging
IEEE 802.1ad Stacked VLANs
IEEE 802.1p Class of Service
IEEE 802.1X Network Authentication
IEEE 802.1AB LLDP
IEEE 1588 PTP
Processing Type Store and Forward
Switch Fabric 640Gbps
Priority Queues Store and Forward
Switch properties
Switch Fabric 640Gbps
Priority Queues 8 Queues
Jumbo Frame 12288bytes
MAC Table Size 32K
Packet Buffer 32Mbits
VLAN Table Size 4094
IGMP Group 4096
ACL Group 4096
Software Feature
Network Redundancy RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP
Security 802.1X, RADIUS, TACACS+, SSL, SSH
Management IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP
Diagnostics RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP, RSPAN
Configuration DHCP Server/Client, Relay Option 82, TFTP, USB
Filter 802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning
Time Sync. NTP, IEEE1588v2 OC (Software Timestamp), TC (Hardware Timestamp)
QoS CoS, DSCP, WRR/SPQ Queuing, Storm Protection
PoE Powering Status, PoE Monitoring, Scheduling, PD Alive Check
Industrial Profiles Ethernet/IP, Modbus TCP, Profinet
Interface
Fiber Port 8x 1/10 Gigabit Ethernet SFP+ Slot
PoE Pin Out V+, V+, V-, V-, for pin 1, 2, 3, 6, Endspan, MDI Mode A
LED Indicators Per unit: PWR, Fault, Ring Master, Ring State
Ports: Link/Active with highest speed(Green), low speed(Amber)
PoE: Output Power
Digital Inputs 1x isolated input from the electronics.
+13 to +30V for state "1"
-30 to +3V for state "0"
Max. input current: 8mA
Button Multiple functions reset button
Serial Console 1x RS232 in RJ45 connector with console cable, 115.2Kbps, 8N1
Storage 1x USB 2.0 storage for firmware update, configuration backup, restore, boot up and syslog
Power Requirements
Operation Voltage 100~240VAC, >50VDC for PoE+ output recommended
Connection 100~240VAC, >50VDC for PoE+ outpAC socketut recommended
PoE Power Budget Max. 370W, Max. 30 W per PoE port
Protection Overload Current Protected
Mechanical Construction
Enclosure Steel metal
Protection Class IP30
Dimensions 440x44x331 mm (WxHxD)
Weight 6.00 kg
Mounting Rack Mounting
Environmental Limits
Operating Temperature Standard: 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity 5 to 95%, (Non-Condensing)
Regulatory Approvals
EMI FCC Part 15 Subpart B Class A
CE EN 55032 Class A
EMS IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
Free Fall IEC60068-2-32
Shock IEC61373
Vibration IEC61373
Green RoHS Compliant
MTBF >100,000 hours
Warranty 5 Years

In a continuing effort of improvement and updated technology, product specifications are subject to change without notice.

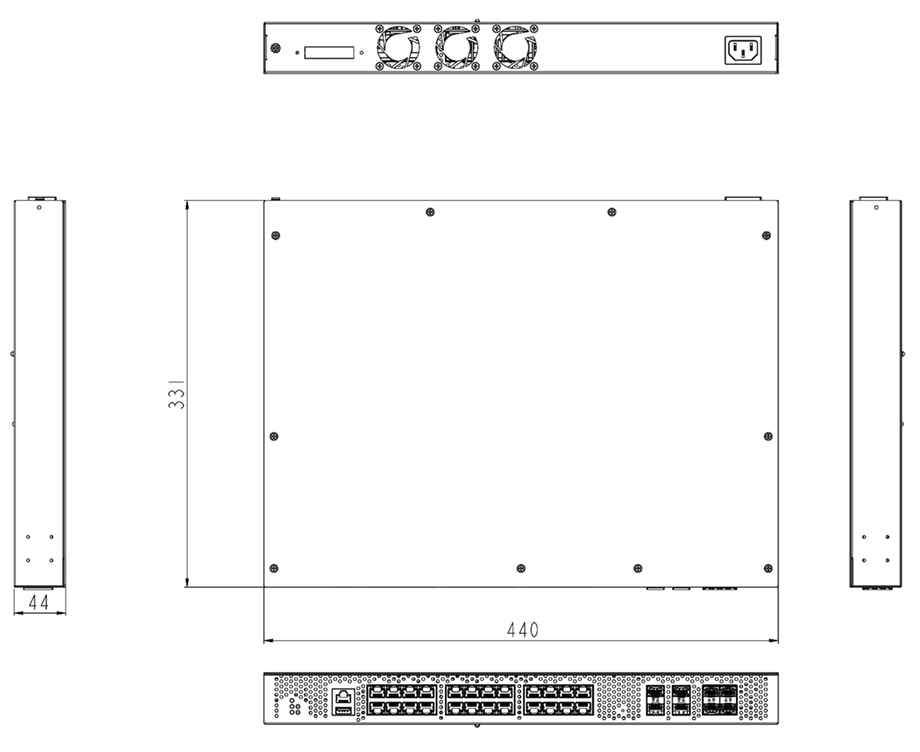

Unit = mm

Available Models
MP-2408XF 24+8 Port Industrial Managed PoE+ Ethernet Switch with 10G Uplink
- 24x 1G/10GT(x) with 24x 30W PSE + 8x 1/10 Gigabit Ethernet SFP+ Slot
- Operating Temperature: 0°C ~ 50°C (32°F ~ 122°F)
Optional Accessories
NDR-240-48 240W Industrial DIN-Rail Power Supply, 48VDC (metal case)
NDR-480-48 480W Industrial DIN-Rail Power Supply, 48VDC (metal case)
  • Datasheet
