ES-0800L-M12-HV

8 Port M12 Industrial Unmanaged Ethernet Switch

Compliant with EN50155

8x 10/100T(x) M12 connector

Built for harsh environments and wide temperature range application

IP40/IP54(Optional) housing

Technology
Standards IEEE 802.3 10BaseT
IEEE 802.3u 100BaseTX
Processing Type Store and Forward
Switch properties
Switch Fabric 1.6Gbps
MAC Table Size 1K
Packet Buffer 448Kbits
Interface
Network Connector 8x 10/100T(x) M12 Female D-coded 4-pole, auto negotiation speed duplex mode, auto MDI/MDI-X
LED Indicators Per unit: PWR1, PWR2, Status
Ports: Link/Active with highest speed(Green), low speed(Amber)
Power Requirements
Operation Voltage 72-110VDC, redundant dual inputs
Connection M12 Male S-coded 4-pole
Power Consumption 0.05A@110VDC
Protection Overload Current Protected, Reverse Polarity Protected
Mechanical Construction
Enclosure SECC SECC
Protection Class IP40/IP54(Optional)
Dimensions 181x99x94 mm (WxHxD)
Weight 1.52 kg
Mounting Wall Mounting Kits, Optional DIN-Rail Mounting
Environmental Limits
Operating Temperature Extended: -40°C ~ 75°C (-40°F ~ 167°F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity 5 to 95%, (Non-Condensing)
Regulatory Approvals
EMI FCC Part 15 Subpart B Class A
CE EN 55032 Class A
EMS IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
Free Fall IEC60068-2-32
Shock IEC61373
Vibration IEC61373
Green RoHS Compliant
Certifications EN 50155
EN 45545-2
MTBF >100,000 hours
Warranty 5 Years

In a continuing effort of improvement and updated technology, product specifications are subject to change without notice.

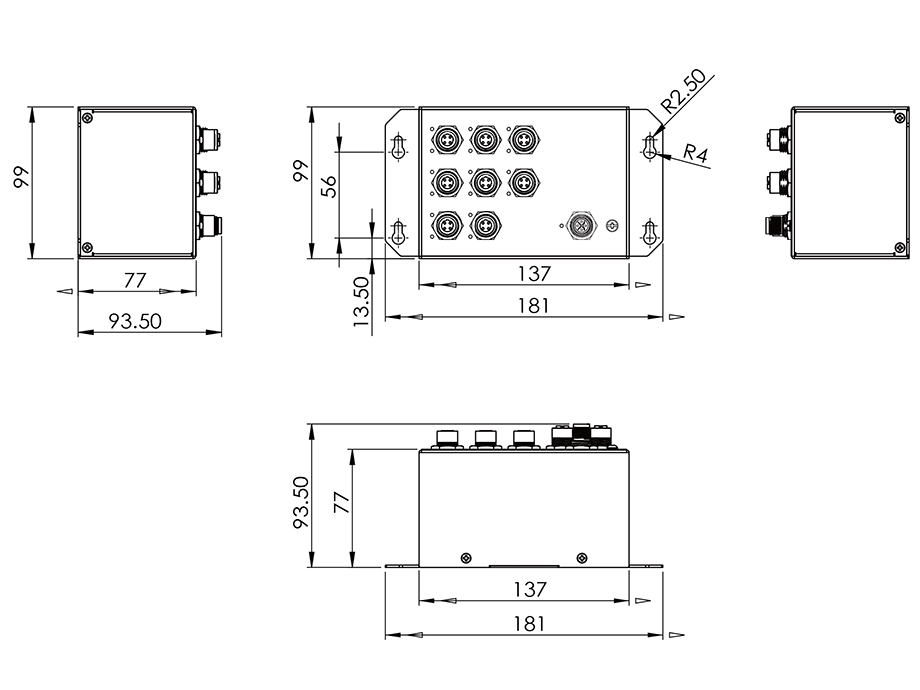

Unit = mm

Available Models
ES-0800L-M12-HV-LVU-T 8 Port M12 Industrial Unmanaged Ethernet Switch
- 8x 10/100T(x) M12 connector
- Power Input: 24-48VDC
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
- Protection Class: IP40
ES-0800L-M12-HV-LVU-WT 8 Port M12 Industrial Unmanaged Ethernet Switch
- 8x 10/100T(x) M12 connector
- Power Input: 24-48VDC
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
- Protection Class: IP54
ES-0800L-M12-HV-HVU-T 8 Port M12 Industrial Unmanaged Ethernet Switch
- 8x 10/100T(x) M12 connector
- Power Input: 72-110VDC
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
- Protection Class: IP40
ES-0800L-M12-HV-HVU-WT 8 Port M12 Industrial Unmanaged Ethernet Switch
- 8x 10/100T(x) M12 connector
- Power Input: 72-110VDC
- Operating Temperature: -40°C ~ 75°C (-40°F ~ 167°F)
- Protection Class: IP54
Optional Accessories
NDR-75-24 75W Industrial DIN-Rail Power Supply, 24VDC (metal case)
NDR-75-48 75W Industrial DIN-Rail Power Supply, 48VDC (metal case)
  • Datasheet
