CP-2408XF

CP-2408XF

24+8 Port 10G Managed L3 PoE+ Ethernet Switch

24x 10GBASE-T Ethernet ports with IEEE 802.3at PoE+

8x 1G/10G SFP+ Slot

RSTP, MSTP, ERPS, LACP for Network Redundancy

QoS CoS/DSCP to increase determinism

Supports IGMP Snooping v1/v2/v3, up to 1023 groups

DHCP Relay Option 82 for policies IP address assignment

SNMP v1/v2c/v3 for network management

Supports Storm Protection

USB storage for configuration-free replacement

Supports PoE PD Alive Check Function for PoE Device Power Recycle

Technology
Standards IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3ae 10GBase over Fiber
IEEE 802.3x Flow Control
IEEE 802.3ad/802.1AX LACP
IEEE 802.3af Power over Ethernet
IEEE 802.3at PoE+
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid STP
IEEE 802.1s Multiple STP
ITU-T G.8032 / Y.1344 ERPS
IEEE 802.1Q VLAN Tagging
IEEE 802.1ad Stacked VLANs
IEEE 802.1p Class of Service
IEEE 802.1X Network Authentication
IEEE 802.1AB LLDP
Processing Type Store and Forward
Priority Queues 8 Queues
IGMP Group 4096
VLAN IP Entries 256
Switch properties
Switch Fabric 144Gbps
Jumbo Frame 12288byte
MAC Table Size 32K
Packet Buffer 32Mbits
VLAN Table Size 4094
ACL Group 4096
Routing Entries (IPv4/IPv6) 16K/8K host, 16K/16K LPM
Software Feature
Network Redundancy RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP
Security 802.1X, RADIUS, TACACS+, SSL, SSH
Management IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP
Diagnostics RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP
Configuration DHCP Server/Client, Relay Option 82, TFTP, USB
Filter 802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning
Time Sync. NTP
QoS CoS, DSCP, WRR/SPQ Queuing, Storm Protection
PoE Powering Status, PoE Monitoring, Scheduling, PD Alive Check
L3 Switching Static Routing, RIP v1/v2, RIPng, OSPF v2, OSPF v3, VRRP v2, ECMP, BGP*, PIM-SM/SSM, PIM-DM*, VRF*
Interface
RJ45 Port 24x 100M/1G/2.5G/5G/10GT(x) with PoE+, auto negotiation speed duplex mode, auto MDI/MDI-X
Fiber Port 8x 1G/10G SFP+ Slot
PoE Pin Out V+, V+, V-, V-, for pin 1, 2, 3, 6, Endspan, MDI Mode A
MGMT Port 1x 10/100/1000T(x), auto negotiation speed duplex mode, auto MDI/MDI-X
LED Indicators Per unit: PWR1, PWR2, Status
Ports: Link/Active (Green)
PoE: Output Power (Amber)
Button Multiple functions reset button
Serial Console 1x RS232 in RJ45 connector with console cable, 115.2Kbps, 8N1
Storage 1x USB 2.0 storage for firmware update, configuration backup, restore, boot up and syslog
Connection 1x AC socket
Power Requirements
Operation Voltage 100~240VAC
Power Consumption 46W without PDs' consumption
PoE Power Budget Max. 370W@AC for total PD consumption, Max. 30 W per PoE port
Protection Overload Current Protected
Mechanical Construction
Enclosure Aluminum / Steel met
Protection Class IP30
Dimensions 440x44x310 mm (WxHxD)
Weight 6.00 kg
Mounting Rack Mounting
Environmental Limits
Operating Temperature 0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature -40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity 5 to 95%, (Non-Condensing)
Regulatory Approvals
EMI FCC Part 15 Subpart B Class A
CE EN 55032 Class A
EMS IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)
Green RoHS Compliant
MTBF >100,000 hours
Warranty 3 Years

In a continuing effort of improvement and updated technology, product specifications are subject to change without notice.

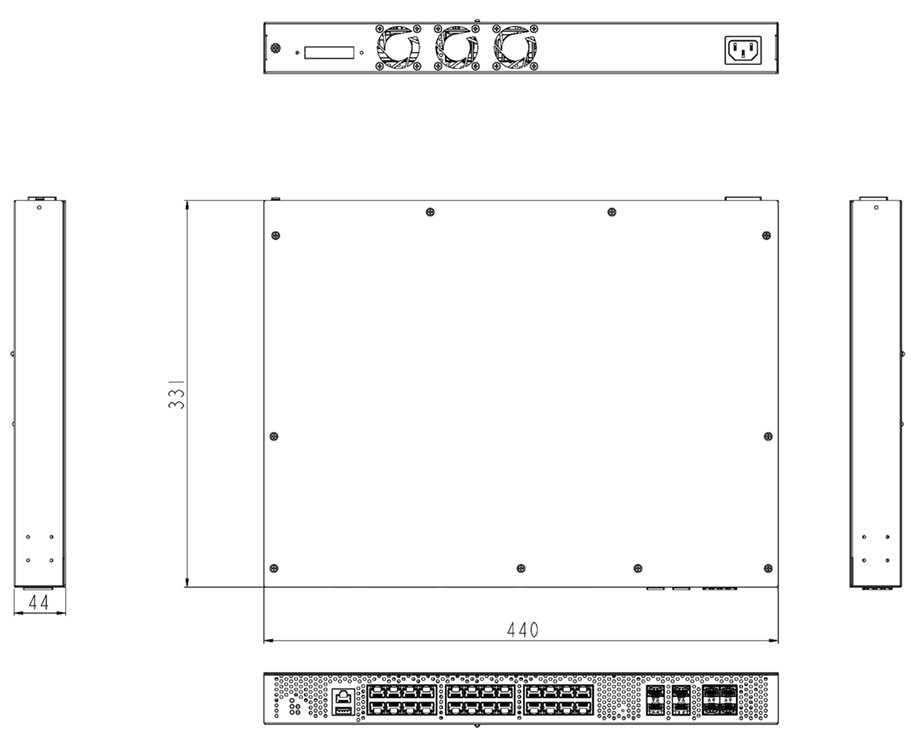

Unit = mm
