MP-2408XF

MP-2408XF

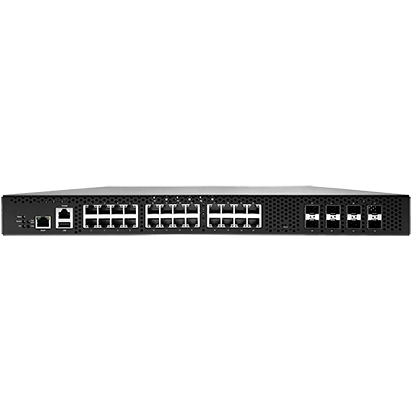

24+8 Port 10G Managed PoE+ Ethernet Switch

24x 10GBASE-T Ethernet ports with IEEE 802.3at PoE+

8x 1G/10G SFP+ Slot

RSTP, MSTP, ERPS, LACP for Network Redundancy

QoS CoS/DSCP to increase determinism

Supports IGMP Snooping v1/v2/v3, up to 1023 groups

DHCP Relay Option 82 for policies IP address assignment

SNMP v1/v2c/v3 for network management

Supports Storm Protection

USB storage for configuration-free replacement

Supports PoE PD Alive Check Function for PoE Device Power Recycle

Technology
Standards	IEEE 802.3u 100BaseTX IEEE 802.3ab 1000BaseT IEEE 802.3ae 10GBase over Fiber IEEE 802.3x Flow Control IEEE 802.3ad/802.1AX LACP IEEE 802.3af Power over Ethernet IEEE 802.3at PoE+ IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid STP IEEE 802.1s Multiple STP ITU-T G.8032 / Y.1344 ERPS IEEE 802.1Q VLAN Tagging IEEE 802.1ad Stacked VLANs IEEE 802.1p Class of Service IEEE 802.1X Network Authentication IEEE 802.1AB LLDP
Processing Type	Store and Forward

Technology

Standards

IEEE 802.3u 100BaseTX
IEEE 802.3ab 1000BaseT
IEEE 802.3ae 10GBase over Fiber
IEEE 802.3x Flow Control
IEEE 802.3ad/802.1AX LACP
IEEE 802.3af Power over Ethernet
IEEE 802.3at PoE+
IEEE 802.1D Spanning Tree Protocol
IEEE 802.1w Rapid STP
IEEE 802.1s Multiple STP
ITU-T G.8032 / Y.1344 ERPS
IEEE 802.1Q VLAN Tagging
IEEE 802.1ad Stacked VLANs
IEEE 802.1p Class of Service
IEEE 802.1X Network Authentication
IEEE 802.1AB LLDP

Processing Type

Store and Forward

Switch properties
Priority Queues	8 Queues
Jumbo Frame	12288bytes
MAC Table Size	32K
VLAN Table Size	4094
IGMP Group	1023
Packet Buffer	32Mbits

Switch properties

Priority Queues

8 Queues

Jumbo Frame

12288bytes

MAC Table Size

32K

VLAN Table Size

4094

IGMP Group

1023

Packet Buffer

32Mbits

Software Feature
Network Redundancy	RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP
Security	802.1X, RADIUS, TACACS+, SSL, SSH
Management	IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP
Diagnostics	RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP
Configuration	DHCP Server/Client, Relay Option 82, TFTP, USB
Filter	802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning
Time Sync.	NTP
QoS	CoS, DSCP, WRR/SPQ Queuing, Storm Protection
PoE	Powering Status, PoE Monitoring, Scheduling, PD Alive Check

Software Feature

Network Redundancy

RSTP, MSTP, G.8032 ERPSv2, Port Trunking with LACP

Security

802.1X, RADIUS, TACACS+, SSL, SSH

Management

IPv4, IPv6, Web, Telnet, Serial Console, CLI, SNMP v1/v2c/v3, uPnP

Diagnostics

RMON, SNMP Inform/Trap, Syslog, SMTP, Port Mirroring, LLDP

Configuration

DHCP Server/Client, Relay Option 82, TFTP, USB

Filter

802.1Q VLAN, Q-in-Q, IGMP Snooping v1/v2/v3, IGMP Querier, Independent Vlan Learning

Time Sync.

NTP

QoS

CoS, DSCP, WRR/SPQ Queuing, Storm Protection

PoE

Powering Status, PoE Monitoring, Scheduling, PD Alive Check

Interface
RJ45 Port	24x 100M/1G/10GT(x) with PoE+, auto negotiation speed duplex mode, auto MDI/MDI-X
Fiber Port	8x 1G/10G SFP+ Slot
PoE Pin Out	V+, V+, V-, V-, for pin 1, 2, 3, 6, Endspan, MDI Mode A
LED Indicators	Per unit: PWR, Status Ports: Link/Active (Green) PoE: Output Power (Amber)
Button	Multiple functions reset button
Serial Console	1x RS232 in RJ45 connector with console cable, 115.2Kbps, 8N1
Storage	1x USB 2.0 storage for firmware update, configuration backup, restore, boot up and syslog

Interface

RJ45 Port

24x 100M/1G/10GT(x) with PoE+, auto negotiation speed duplex mode, auto MDI/MDI-X

Fiber Port

8x 1G/10G SFP+ Slot

PoE Pin Out

V+, V+, V-, V-, for pin 1, 2, 3, 6, Endspan, MDI Mode A

LED Indicators

Per unit: PWR, Status
Ports: Link/Active (Green)
PoE: Output Power (Amber)

Button

Multiple functions reset button

Serial Console

1x RS232 in RJ45 connector with console cable, 115.2Kbps, 8N1

Storage

1x USB 2.0 storage for firmware update, configuration backup, restore, boot up and syslog

Power Requirements
Operation Voltage	100~240VAC
Connection	AC socket
Power Consumption	46W without PDs' consumption
PoE Power Budget	Max. 370W@AC for total PD consumption, Max. 30 W per PoE port
Protection	Overload Current Protected

Power Requirements

Operation Voltage

100~240VAC

Connection

AC socket

Power Consumption

46W without PDs' consumption

PoE Power Budget

Max. 370W@AC for total PD consumption, Max. 30 W per PoE port

Protection

Overload Current Protected

Mechanical Construction
Enclosure	Steel met
Protection Class	IP30
Dimensions	440x44x310 mm (WxHxD)
Weight	6.00 kg
Mounting	Rack Mounting

Mechanical Construction

Enclosure

Steel met

Protection Class

IP30

Dimensions

440x44x310 mm (WxHxD)

Weight

6.00 kg

Mounting

Rack Mounting

Environmental Limits
Operating Temperature	0°C ~ 50°C (32°F ~ 122°F)
Storage Temperature	-40°C ~ 85°C (-40°F ~ 185°F)
Ambient Relative Humidity	5 to 95%, (Non-Condensing)

Environmental Limits

Operating Temperature

0°C ~ 50°C (32°F ~ 122°F)

Storage Temperature

-40°C ~ 85°C (-40°F ~ 185°F)

Ambient Relative Humidity

5 to 95%, (Non-Condensing)

Regulatory Approvals
EMI	FCC Part 15 Subpart B Class A CE EN 55032 Class A
EMS	IEC61000-4-2 (ESD) IEC61000-4-3 (RS) IEC61000-4-4 (EFT) IEC61000-4-5 (Surge) IEC61000-4-6 (CS) IEC61000-4-8 (Magnetic Field)
Green	RoHS Compliant
MTBF	>100,000 hours
Warranty	2 Years

Regulatory Approvals

EMI

FCC Part 15 Subpart B Class A
CE EN 55032 Class A

EMS

IEC61000-4-2 (ESD)
IEC61000-4-3 (RS)
IEC61000-4-4 (EFT)
IEC61000-4-5 (Surge)
IEC61000-4-6 (CS)
IEC61000-4-8 (Magnetic Field)

Green

RoHS Compliant

MTBF

>100,000 hours

Warranty

2 Years

24+8 Port 10G Managed PoE+ Ethernet Switch

In a continuing effort of improvement and updated technology, product specifications are subject to change without notice.

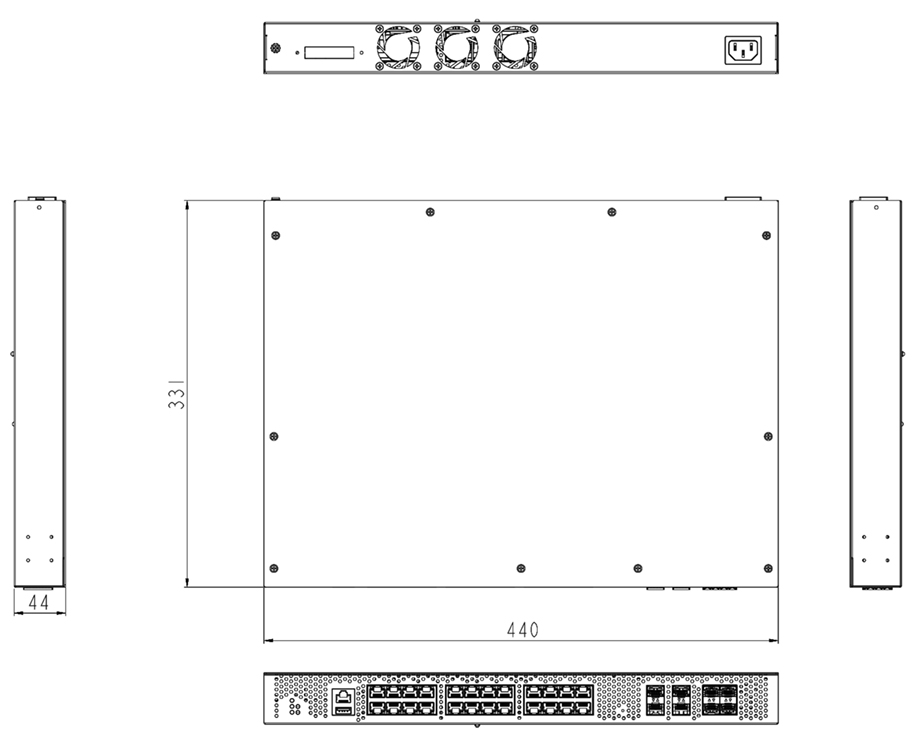

Unit = mm
